High destruction capability
Regenerative thermal oxidation handles demanding mixed-VOC streams.
VOC CONCENTRATION / REGENERATIVE OXIDATION
Zeolite Rotor + RTO System
Large-air-volume VOC concentration combined with high-temperature regenerative oxidation.
Oxidation temperature≥750°C
Heat recoveryUp to approx. 95%
Concentration methodZeolite rotor
OperationContinuous & automated
PRODUCT OVERVIEW
Engineered around the process, pollutant and production line.
After particulate pre-treatment, the zeolite rotor adsorbs VOCs from the main exhaust stream. A small portion of heated air desorbs the rotor and carries a concentrated VOC stream to the RTO.
Inside the RTO, organic compounds are oxidised at 750°C or above. Ceramic media stores heat from the outgoing clean gas and releases it to the incoming gas during the next switching cycle.
Performance that translates into practical operation
Regenerative heat storage
Ceramic media captures and reuses most of the oxidation heat.
Smaller thermal load
Rotor concentration reduces the airflow delivered to the RTO.
Stable multi-zone control
Automatic valves and rotor controls coordinate concentration and oxidation.
A clear route from collection to controlled discharge
01
Pre-treatment
Remove dust and particulate matter from the incoming exhaust.
02
Zeolite adsorption
Capture VOCs while the majority of cleaned air is discharged.
03
Rotor desorption
Use a smaller heated stream to produce concentrated VOC gas.
04
RTO oxidation
Oxidise the concentrated gas at high temperature into CO₂ and H₂O.
05
Regenerative recovery
Store and reuse heat through alternating ceramic beds.
APPLICATION RANGE
Configured for the conditions that matter at your site
Final sizing, materials, controls and safety provisions are selected from the exhaust or process data supplied for the project.
TECHNICAL CHARACTERISTICS
Designed for dependable industrial service
- High-temperature regenerative oxidation chamber
- Structured ceramic heat-storage media
- Automatic multi-bed airflow switching
- Rotor speed and desorption-temperature control
- Safety interlocks and fault handling
- Project-specific pre-treatment and material selection
Information required for accurate equipment selection
Final performance depends on verified process conditions. A technical proposal should not be based on equipment name or nominal airflow alone.
Process and pollutant data
Provide the production process, pollutant composition, normal and peak concentration, temperature, humidity and any dust, mist or corrosive components.
Capacity and operating pattern
State normal, minimum and peak airflow or treatment capacity, daily operating hours, batch cycles and expected future expansion.
Site and utility conditions
Include available installation space, indoor or outdoor location, electrical standard, fuel or water availability, access constraints and project location.
Required project scope
Clarify whether the inquiry covers equipment supply, OEM manufacture, ductwork, controls, installation guidance, commissioning, training or spare parts.

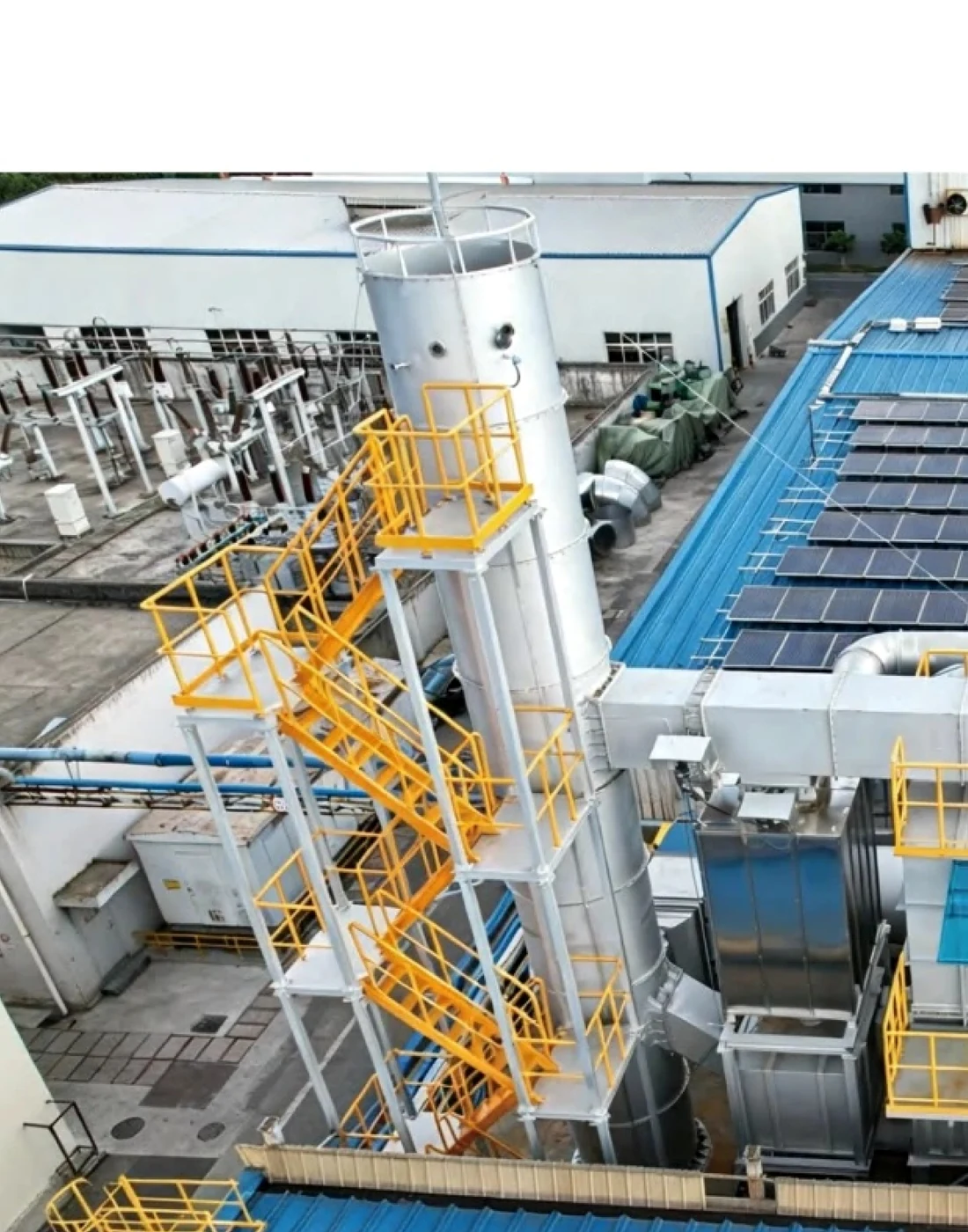

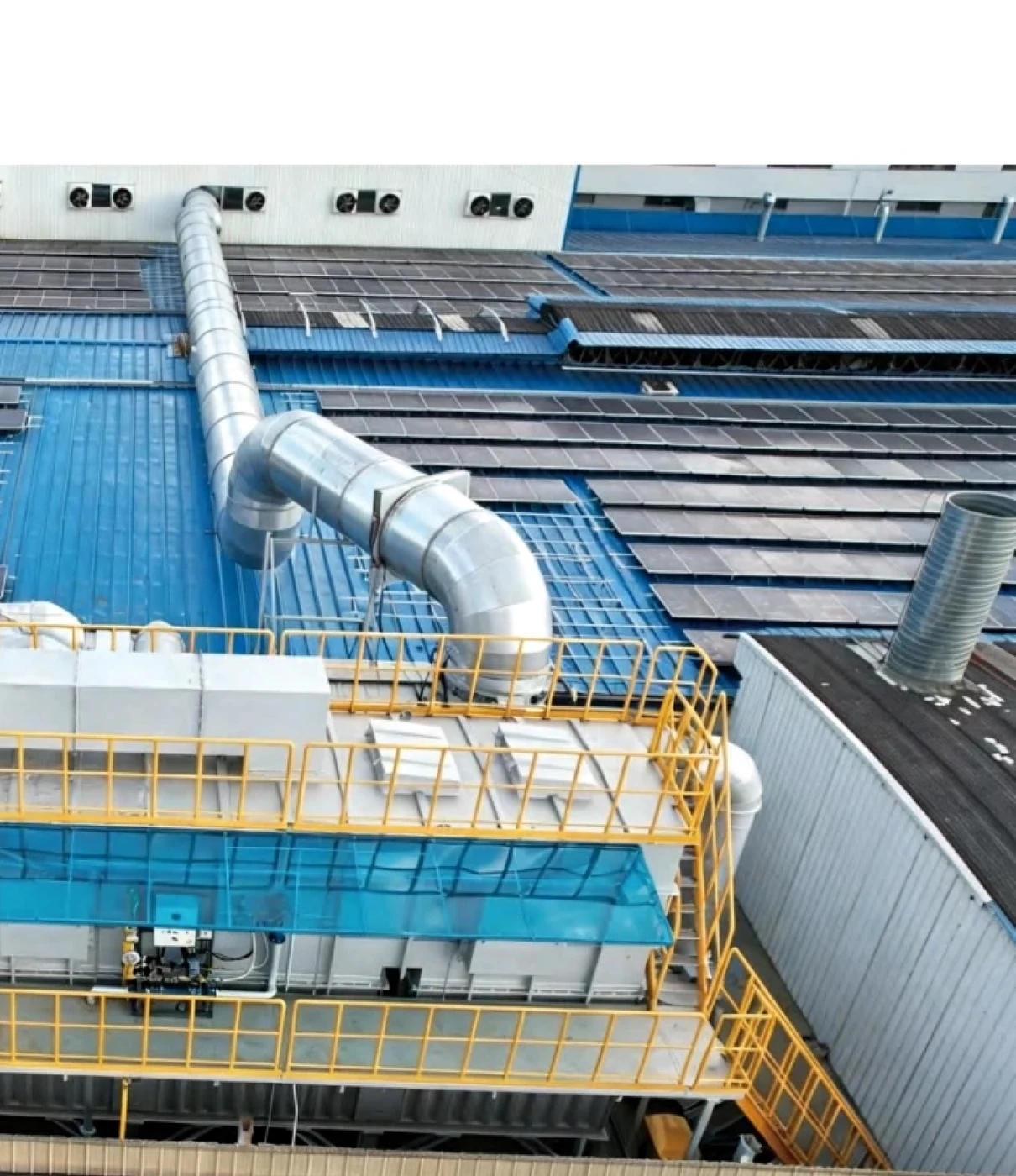

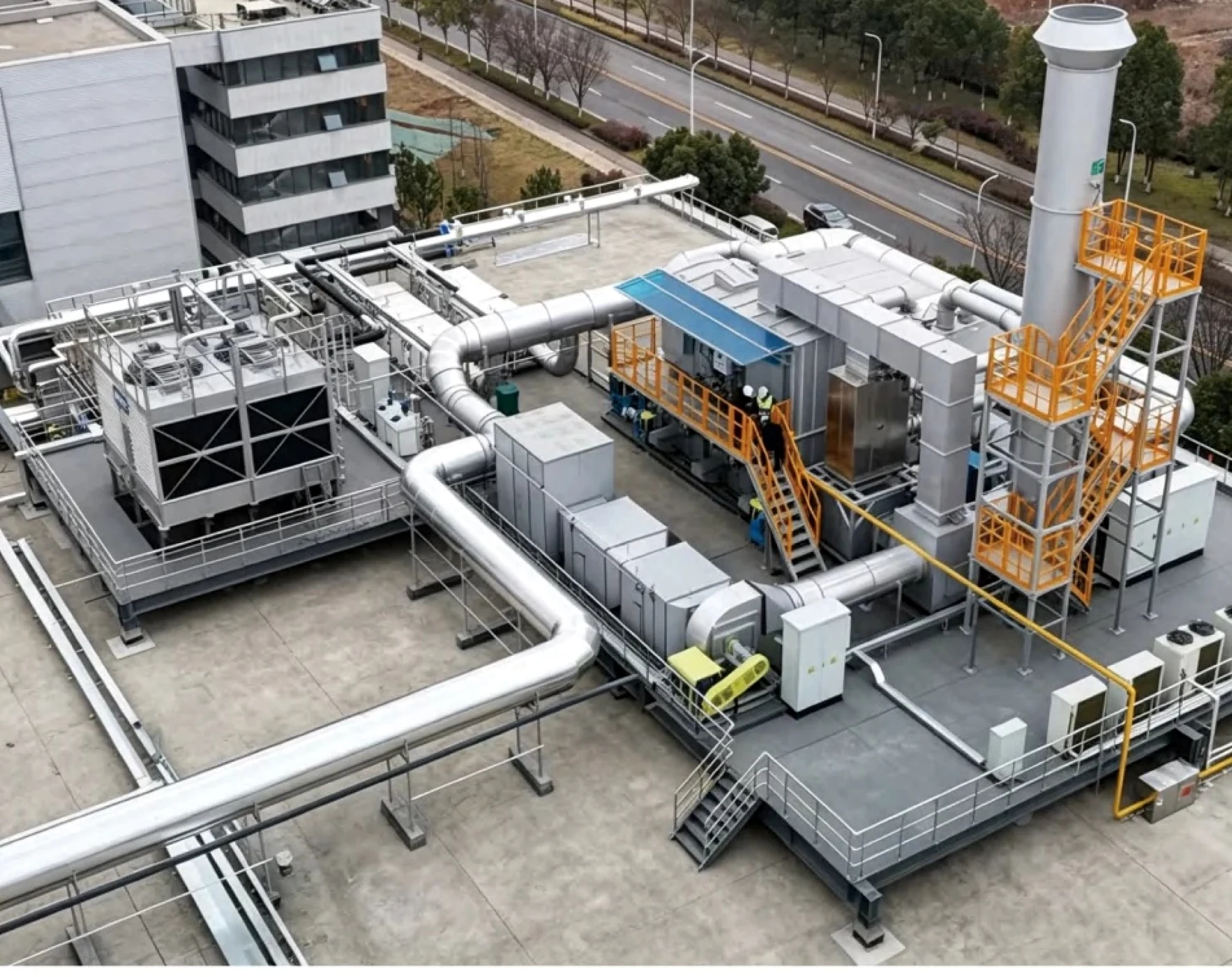

Equipment in the field
Clean product assets extracted from the supplied source material. No translated brochure pages are embedded.
PROJECT-SPECIFIC ENGINEERING
Tell us what your process needs to handle.
Share the airflow or capacity, pollutant composition, concentration, temperature, operating hours and site constraints. We will recommend the appropriate configuration.
