Broad contaminant range
Treat acid mist, alkaline gas, hydrogen sulphide, ammonia and odorous exhaust.
WET GAS CLEANING / PACKED TOWER
Spray Scrubber Tower
Wet scrubbing for soluble gases, odours and contaminated industrial exhaust.
Treatment methodGas-liquid absorption
Tower typePacked spray tower
MaterialsFRP / PP / PVC options
OperationContinuous or intermittent
PRODUCT OVERVIEW
Engineered around the process, pollutant and production line.

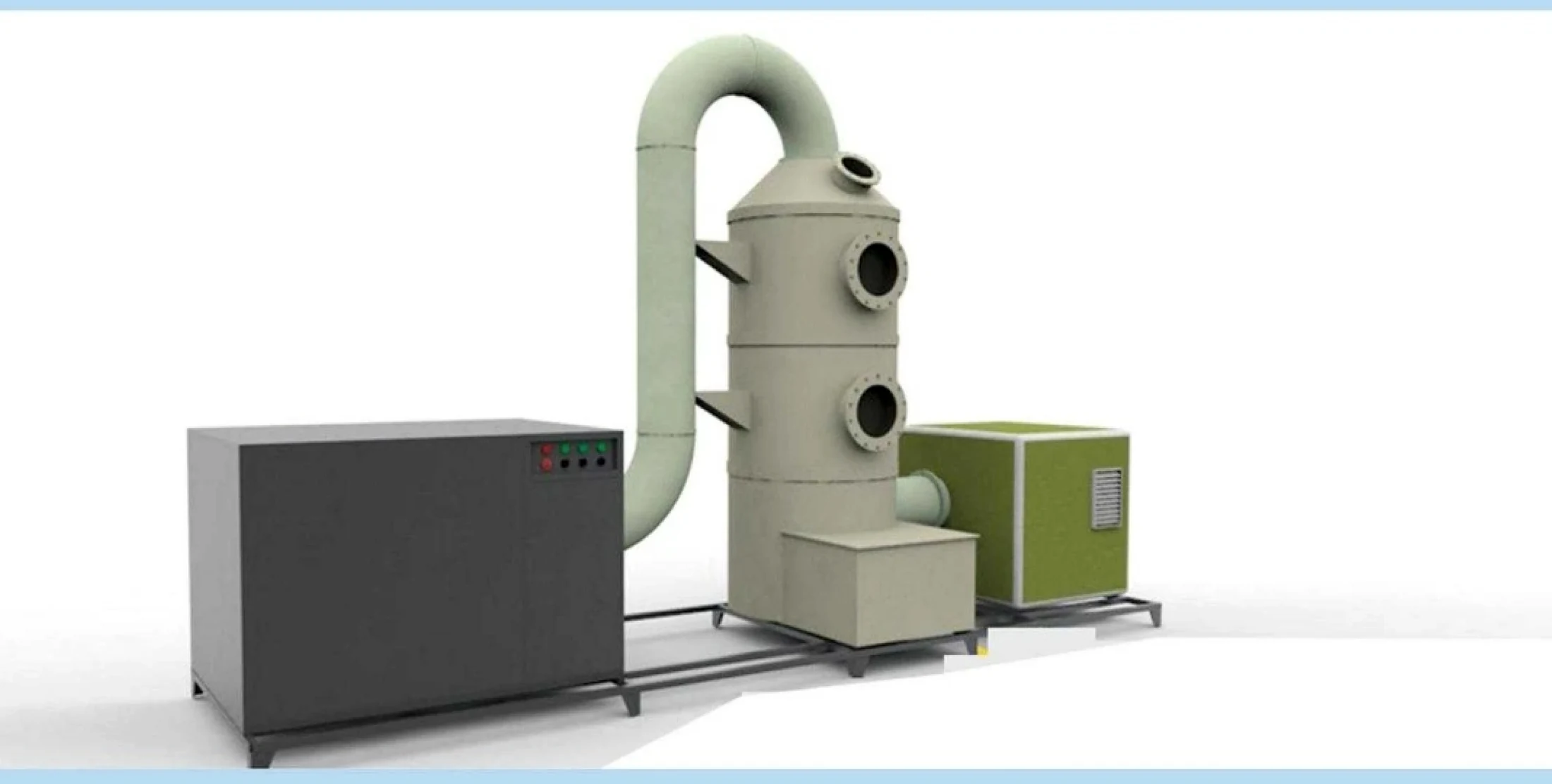

The packed spray tower creates intensive contact between the exhaust gas and scrubbing liquid. Selected chemicals absorb, neutralise or remove water-soluble and odorous contaminants.
It can operate continuously or intermittently and is commonly used as a stand-alone gas-cleaning stage or as pre-treatment before advanced emission-control equipment.
Performance that translates into practical operation
Low pressure drop
Efficient packing supports gas-liquid contact without excessive fan demand.
Simple operation
Pumps, dosing, spray nozzles and liquid level can be managed through a compact control system.
Corrosion resistance
Tower material can be selected around the scrubbing chemistry and temperature.
A clear route from collection to controlled discharge
01
Gas inlet
Introduce contaminated exhaust into the lower tower section.
02
Liquid spraying
Distribute treatment liquid evenly through corrosion-resistant nozzles.
03
Packed contact
Increase the gas-liquid contact area across the packed bed.
04
Mist separation
Remove entrained droplets before the gas leaves the tower.
05
Liquid circulation
Recirculate, dose and replace the scrubbing solution as required.
APPLICATION RANGE
Configured for the conditions that matter at your site
Final sizing, materials, controls and safety provisions are selected from the exhaust or process data supplied for the project.
TECHNICAL CHARACTERISTICS
Designed for dependable industrial service
- Low-resistance high-efficiency packing
- Recirculation pump and chemical-dosing options
- Mist eliminator at the tower outlet
- FRP, PP and PVC construction choices
- Flexible single or multi-stage configuration
- Accessible maintenance and inspection ports
Information required for accurate equipment selection
Final performance depends on verified process conditions. A technical proposal should not be based on equipment name or nominal airflow alone.
Process and pollutant data
Provide the production process, pollutant composition, normal and peak concentration, temperature, humidity and any dust, mist or corrosive components.
Capacity and operating pattern
State normal, minimum and peak airflow or treatment capacity, daily operating hours, batch cycles and expected future expansion.
Site and utility conditions
Include available installation space, indoor or outdoor location, electrical standard, fuel or water availability, access constraints and project location.
Required project scope
Clarify whether the inquiry covers equipment supply, OEM manufacture, ductwork, controls, installation guidance, commissioning, training or spare parts.

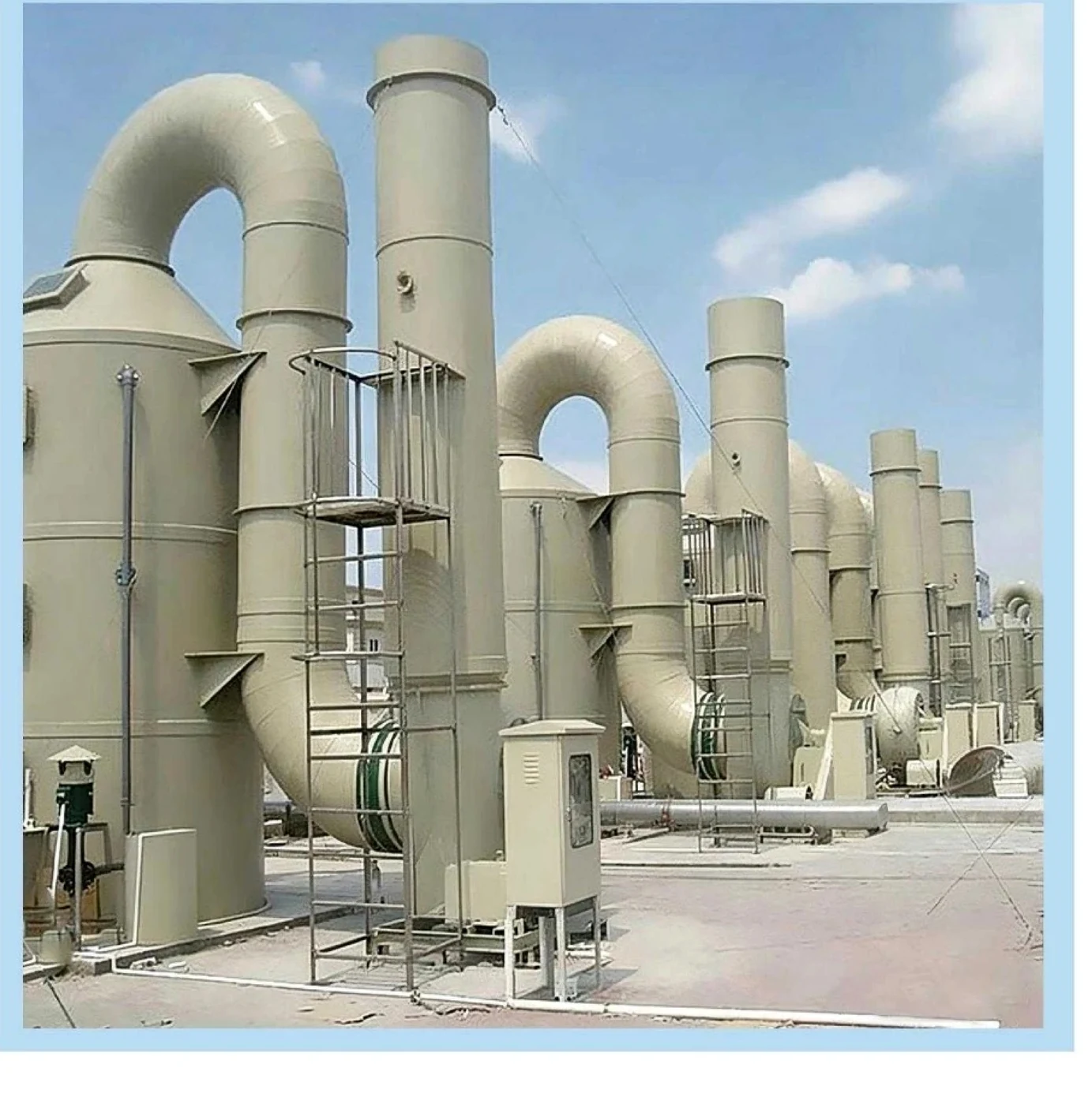

Equipment in the field
Clean product assets extracted from the supplied source material. No translated brochure pages are embedded.
PROJECT-SPECIFIC ENGINEERING
Tell us what your process needs to handle.
Share the airflow or capacity, pollutant composition, concentration, temperature, operating hours and site constraints. We will recommend the appropriate configuration.
