Very high filtration efficiency
Uniform micropores retain fine particles while supporting clean air discharge.
FINE DUST FILTRATION / RIGID FILTER MEDIA
Sintered Plate Dust Collector
Rigid, long-life filtration for fine, humid and difficult industrial dust.
Typical outlet dust≤5 mg/m³
Reported efficiencyUp to 99.999%
Relative footprintApprox. 1/3–1/6 of baghouse
Filter typeRigid sintered plate
PRODUCT OVERVIEW
Engineered around the process, pollutant and production line.

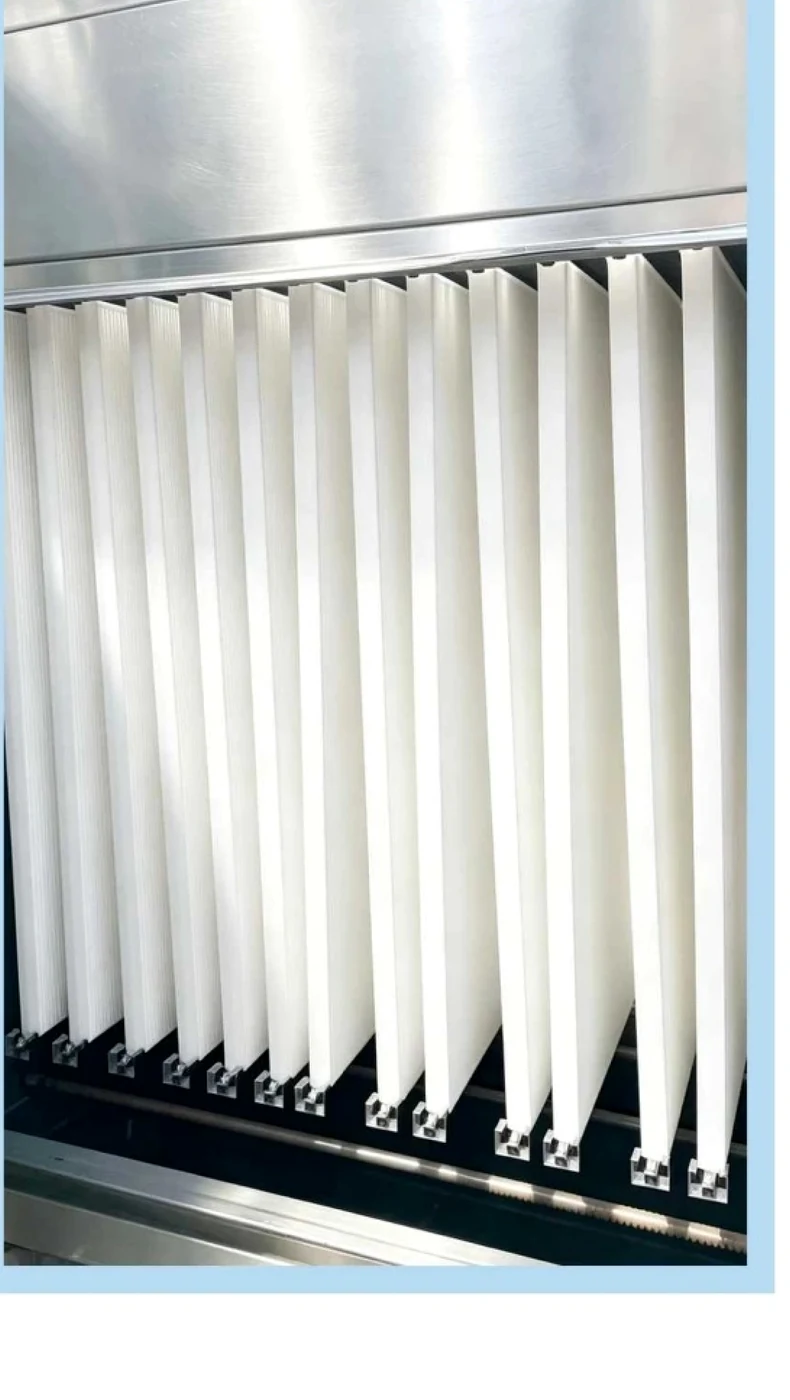

Corrugated sintered filter plates replace conventional fabric bags with a rigid, shape-stable element that resists abrasion and deformation.
The controlled microporous surface supports fine-particle capture, stable pressure drop and effective pulse cleaning. Hydrophobic plate options can also handle moisture-bearing dust.
Performance that translates into practical operation
Long element life
Rigid, abrasion-resistant plates can outlast conventional filter bags.
Stable cleaning performance
Smooth treated surfaces release deposited dust during pulse cleaning.
Compact equipment footprint
Plate geometry allows high filtration area in a smaller housing.
A clear route from collection to controlled discharge
01
Dust collection
Draw contaminated air from the process into the collector.
02
Surface filtration
Capture particles on the outside of the sintered plates.
03
Clean-air passage
Move filtered gas through the plate pores into the clean chamber.
04
Pulse cleaning
Use compressed air to release the dust cake from the rigid surface.
05
Hopper discharge
Collect and remove loosened dust from the bottom hoppers.
APPLICATION RANGE
Configured for the conditions that matter at your site
Final sizing, materials, controls and safety provisions are selected from the exhaust or process data supplied for the project.
TECHNICAL CHARACTERISTICS
Designed for dependable industrial service
- Rigid corrugated filter elements
- Hydrophobic and chemically resistant formulations
- Stable resistance over long operating periods
- Simple top or side element replacement
- Optional one-stage replacement for multi-stage filtration
- Pulse valves and automated differential-pressure control
Information required for accurate equipment selection
Final performance depends on verified process conditions. A technical proposal should not be based on equipment name or nominal airflow alone.
Process and pollutant data
Provide the production process, pollutant composition, normal and peak concentration, temperature, humidity and any dust, mist or corrosive components.
Capacity and operating pattern
State normal, minimum and peak airflow or treatment capacity, daily operating hours, batch cycles and expected future expansion.
Site and utility conditions
Include available installation space, indoor or outdoor location, electrical standard, fuel or water availability, access constraints and project location.
Required project scope
Clarify whether the inquiry covers equipment supply, OEM manufacture, ductwork, controls, installation guidance, commissioning, training or spare parts.

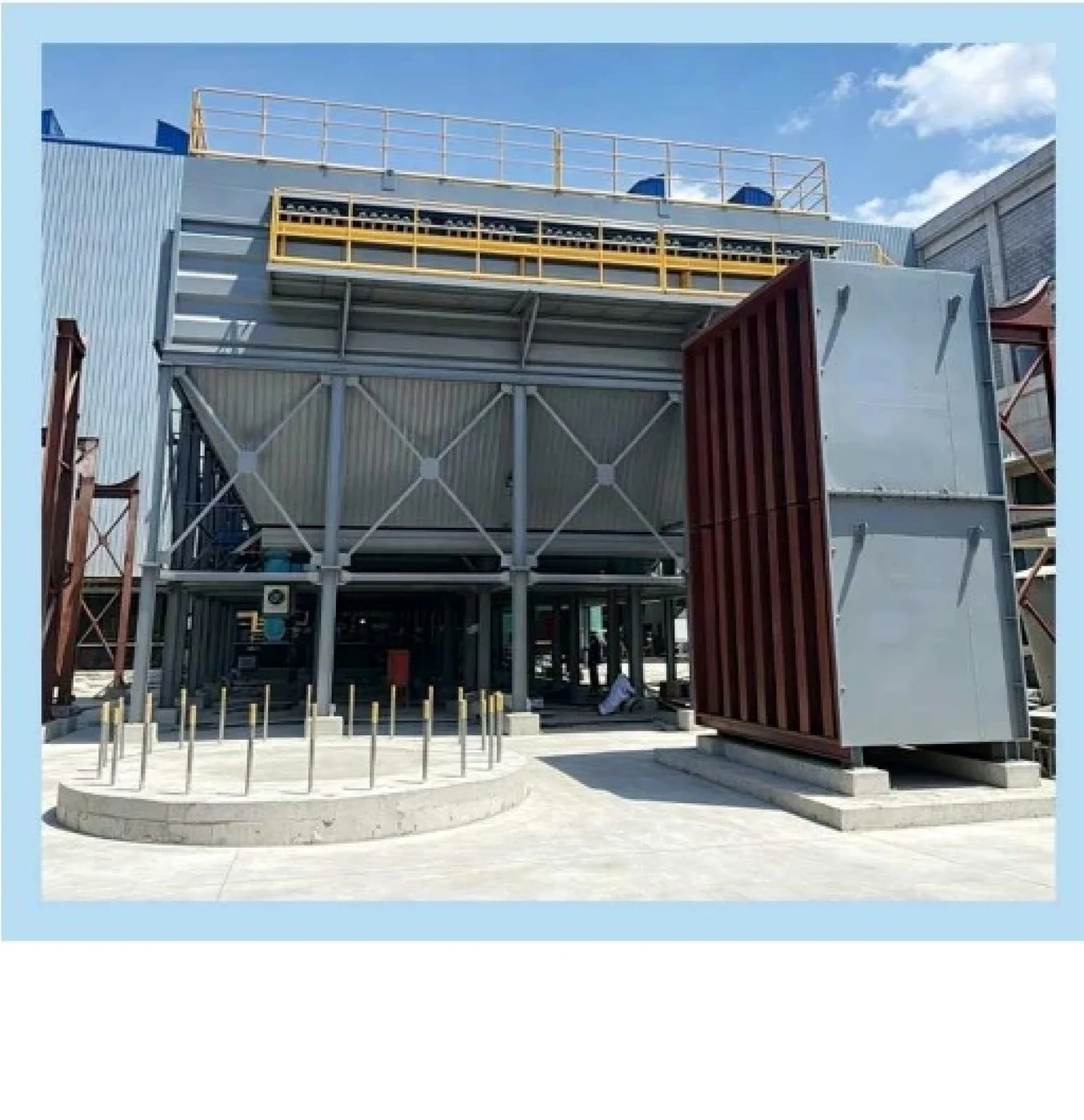

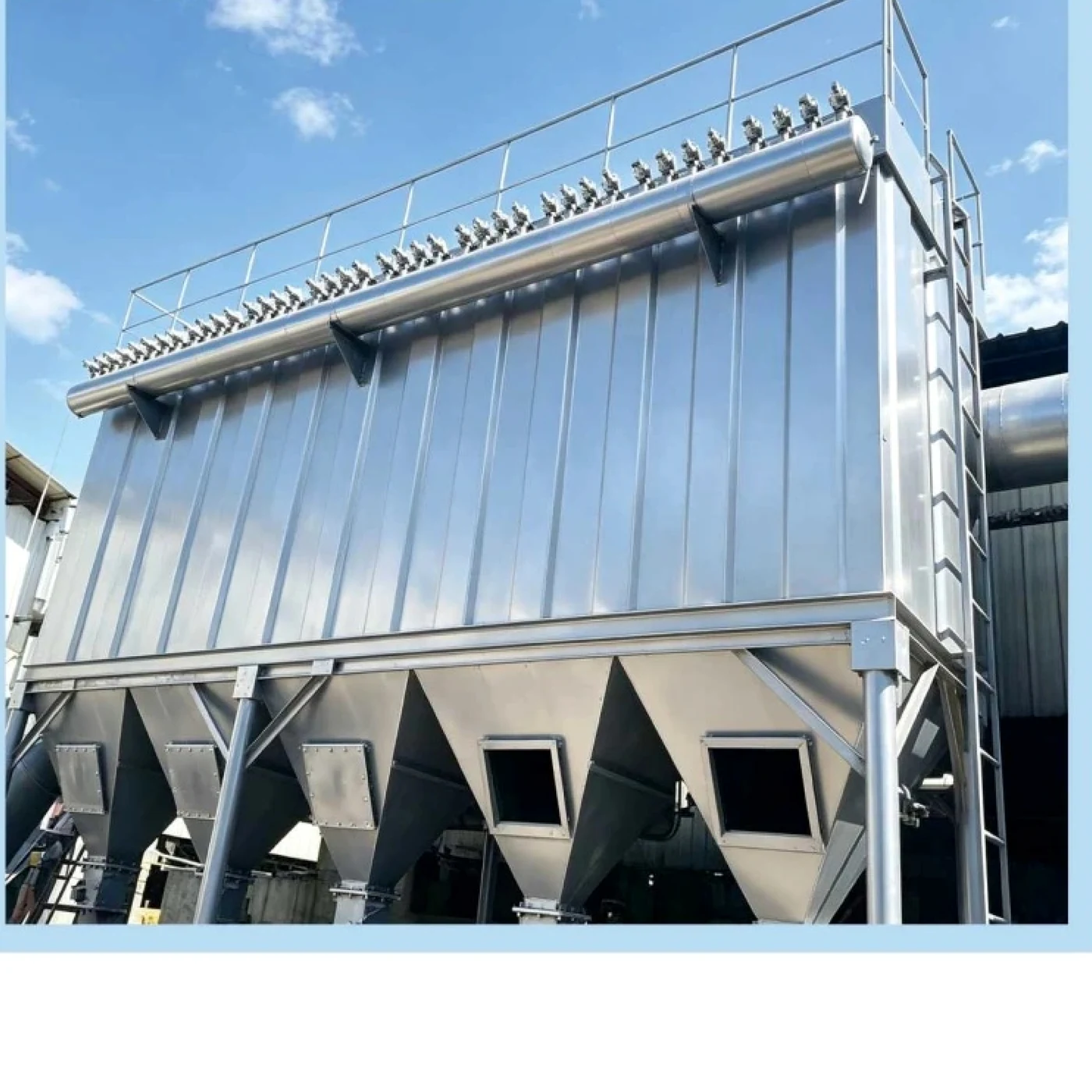

Equipment in the field
Clean product assets extracted from the supplied source material. No translated brochure pages are embedded.
PROJECT-SPECIFIC ENGINEERING
Tell us what your process needs to handle.
Share the airflow or capacity, pollutant composition, concentration, temperature, operating hours and site constraints. We will recommend the appropriate configuration.
Discuss your project →
